Accessories
Our SLIM LINE processing platforms are designed to also offer additional hardware options. Get even more flexibility and power with our analog audio-, video- or Dolby®- Accessory-Boards.
-
O_DAP_DANTE_a
Option Board Audio-over-IP Dante® I/O- Audio-over-IP Dante™ Digital Audio Networking
- D*AP8 hardware platform: 16ch in/out (44.1 / 48kHz)
- D*AP4 hardware platform: 8ch in/out (44.1 / 48 / 88.2 / 96 kHz)
- AIXpressor hardware platform: 64ch (48 kHz)
- Redundant network support
-
O_DAP_MB_a
Option Board MADI I/O (BNC)- MADI digital audio, BNC
- D*AP8 hardware platform: 16ch in/out (44.1 / 48kHz)
- D*AP4 hardware platform: 8ch in/out (44.1 / 48 / 88.2 / 96 kHz)
- AIXpressor hardware platform: 64ch in/out (48kHz)
- Dedicated routing 64x64
- Reference grade word clock recovery from MADI
-
O_DAP_MO_MM_a
Option Board MADI I/O (optical LC, Multimode)- MADI digital audio, optical LC (Multimode)
- D*AP8 hardware platform: 16ch in/out (44.1 / 48kHz)
- D*AP4 hardware platform: 8ch in/out (44.1 / 48 / 88.2 / 96 kHz)
- AIXpressor hardware platform: 64ch (48 kHz)
- Dedicated routing 64x64
- Reference grade word clock recovery from MADI
-
O_DAP_MO_SM_a
Option Board MADI I/O (optical LC, Singlemode)
- MADI digital audio, optical LC (Singlemode)
- D*AP8 hardware platform: 16ch in/out (44.1 / 48kHz)
- D*AP4 hardware platform: 8ch in/out (44.1 / 48 / 88.2 / 96 kHz)
- AIXpressor hardware platform: 64ch in/out (48kHz)
- Dedicated routing 64x64
- Reference grade word clock recovery from MADI
-
O_DAP_SDI_a
Option Board 16ch SDI I/O (3G/HD/SD)- 16 ch audio de-embedder / embedder
- up to 15 frames video delay for all supported video standards
- VANC (SMPTE 2020-2) de-embedder / embedder
- Lip-Sync compensation for non-processed audio signals
-
O_DAP_ADDA_a
Option Board 4ch analog I/O- 4 ch analog in
- 4 ch analog out
- 25pin Sub-D female Connector
- power fail bypass relay
-
O_DAP_AES_a
Option Board 8ch AES/EBU I/O- 4x AES EBU (8ch) I/O
- 25pin Sub-D female Connector
- 110 Ohm balanced or 75 Ohm unbalanced I/O
- power fail bypass relay
-

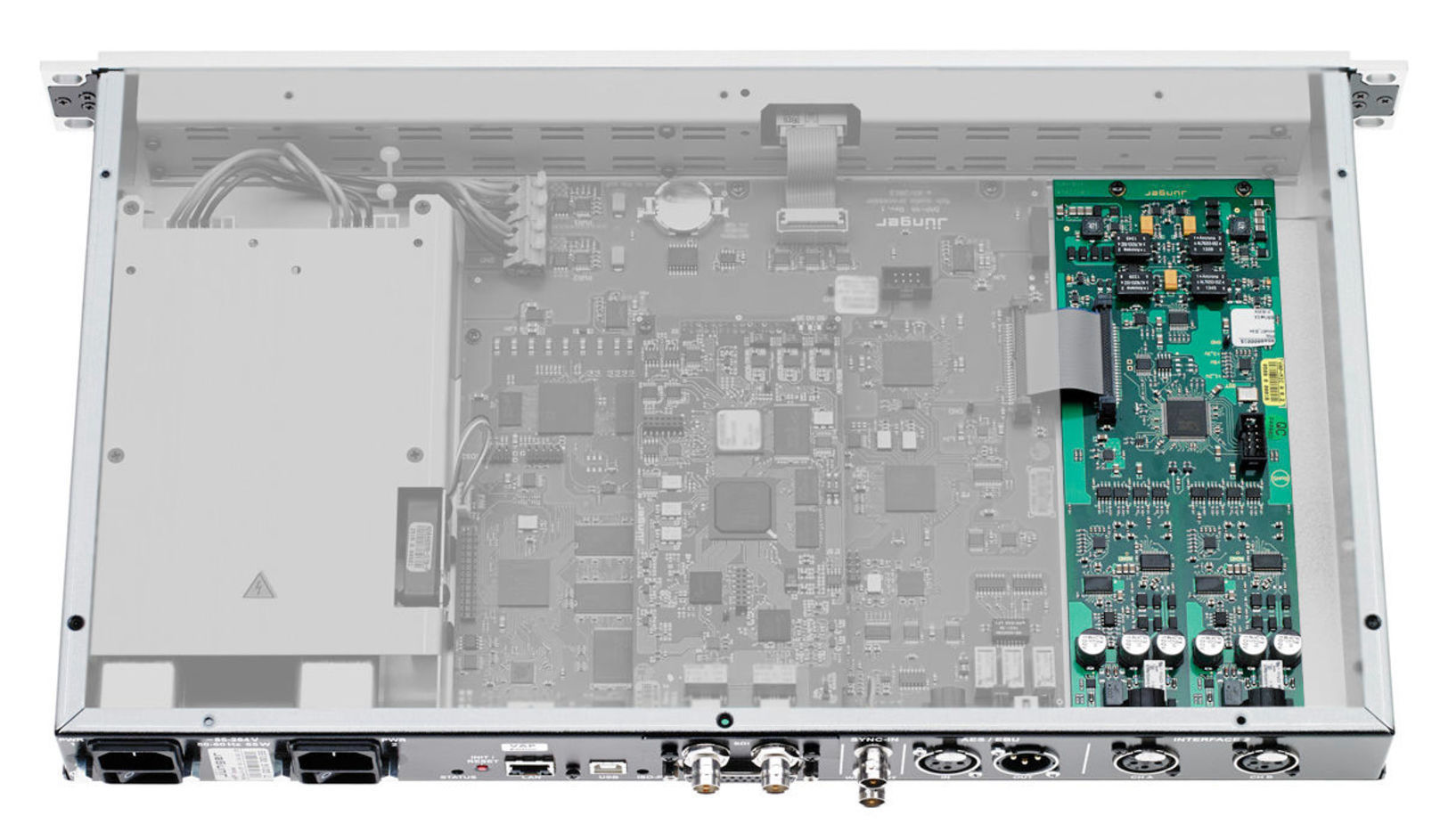

O_DAP_AMIC_a
Option Board 2ch analog Input- 2ch analog Input (XLR) to be used as line-in and/or Mic-In (mic pre-amps) interface.
-
O_DAP8_Dolby_DENC_a
Option Board Dolby® D/D+/E Codecs- Optional Dolby® Digital (AC3) Encoding / Decoding license
- Optional Dolby® Digital+ Encoding / Decoding license
- Optional Dolby® E Encoding / Decoding license
-
L_DAP8_Dolby_DEC_b
License Dolby® D/D+/E Decoder, Metadata emulation- Dolby® Pro Logic II Decoding
- Dolby® D / D+ Decoding
- Dolby® E Decoding
- Metadata emulation
-
O_DAP8_FM_a
Option Board FM Conditioner Coprocessor- extends the functionality of the D*AP8 by extra FM conditioners
- provides pre-control to MPX power, deviation and pre-emphasis
- includes true peak and pre-emphasis limiting
- includes visualization of the development of MPX power over time
