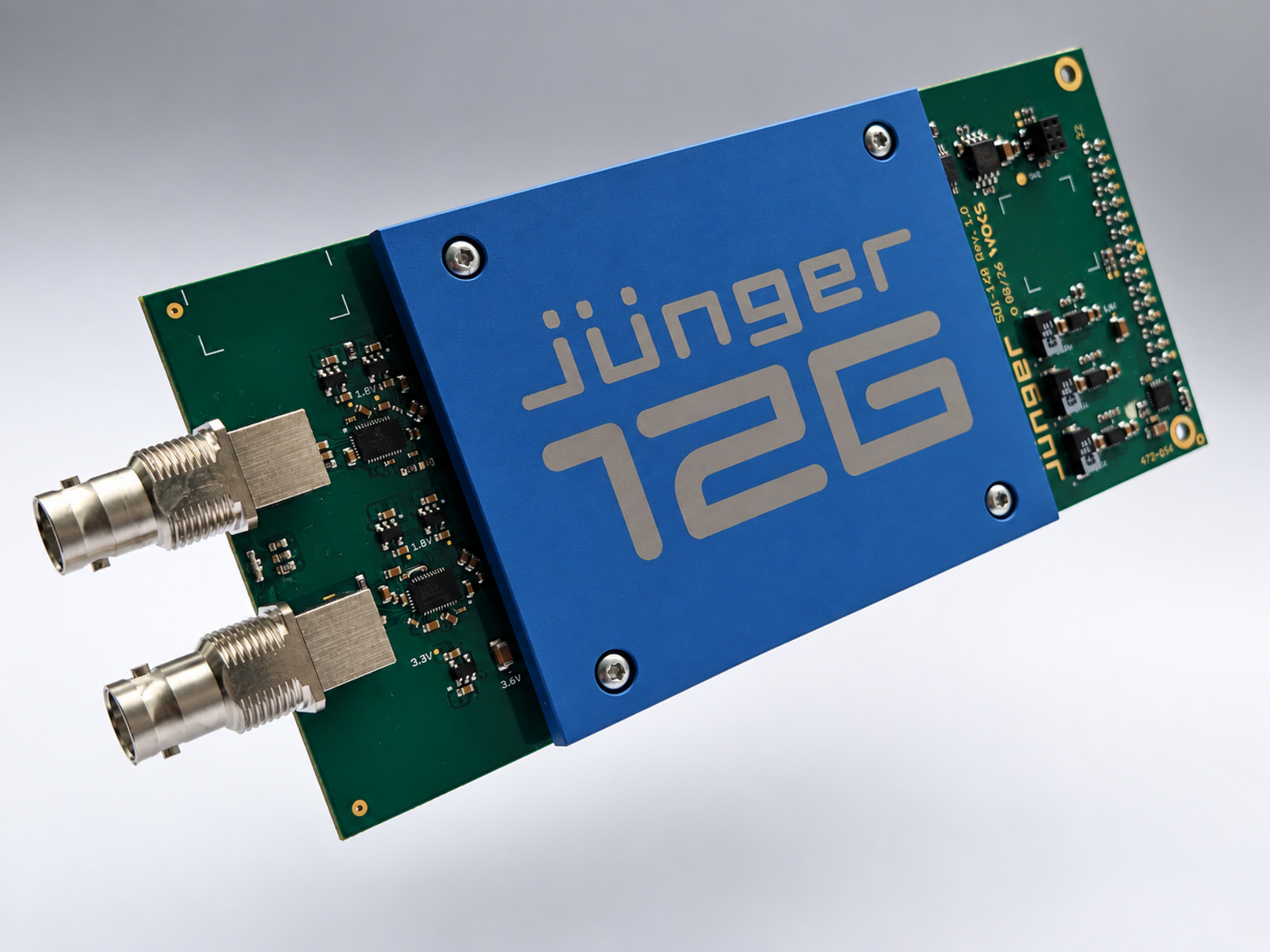

Option Board 12G UHD SDI
Single-link UHD video with embedded audio, designed for high-bandwidth broadcast integration.
This 12G-SDI Interface board for AIXpressor allows access to and modification of all embedded audio channels within an SDI stream. It supports 12G/6G/3G/HD/SD-SDI embedding and de-embedding, SDI audio group handling, video delay for compensation of audio processing latency, and VANC metadata handling.
Key Features
- 16 ch audio de-embedder / embedder
- Supports 12G/6G/3G/HD/SD SDI including DCI
- up to 60 frames video delay for all supported video standards
- VANC (SMPTE 2020-2) de-embedder / embedder
- Lip-Sync compensation for non-processed audio signals
Versions & Options
- AIXpressor hardware platform: two option slots available for this option board
- This option board is available for all products listed in Accessories below this page.
