MADI I/O (SC, optical)

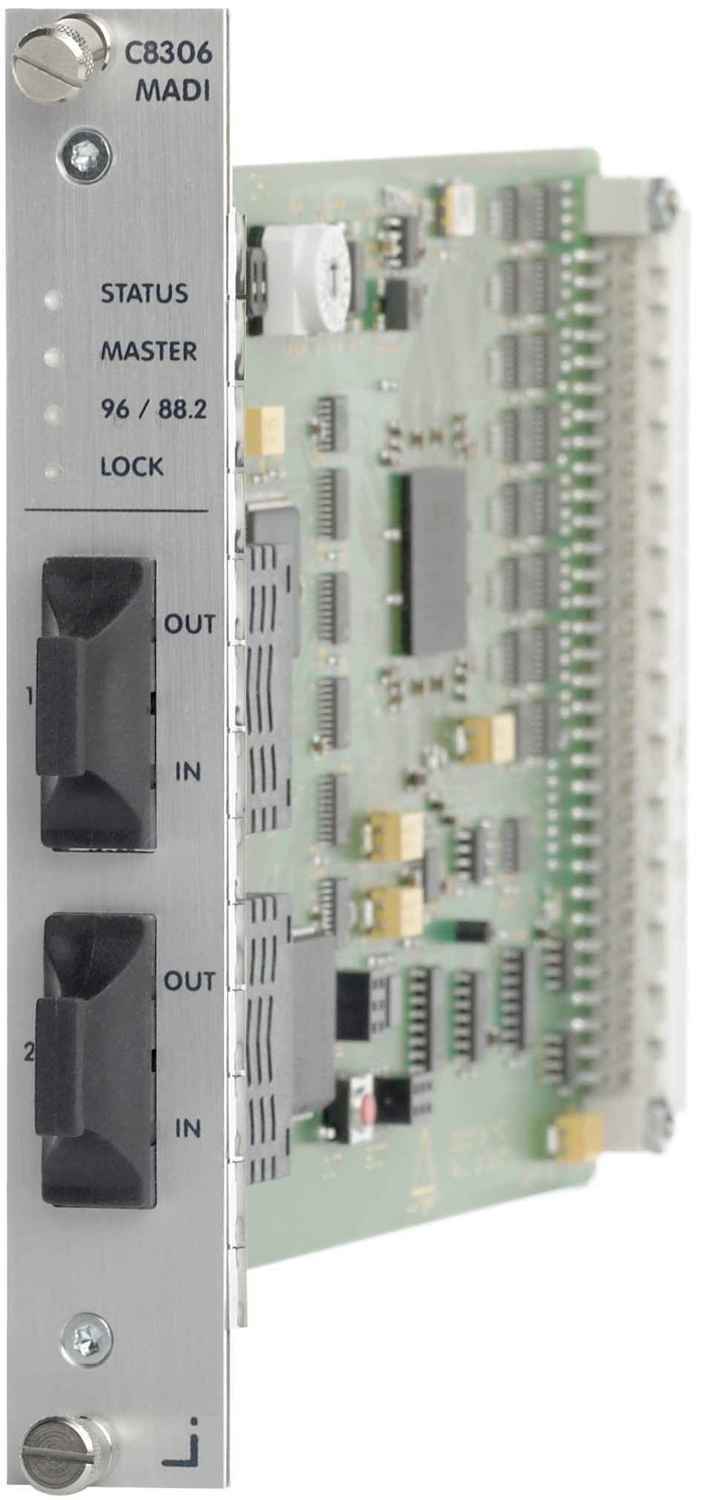

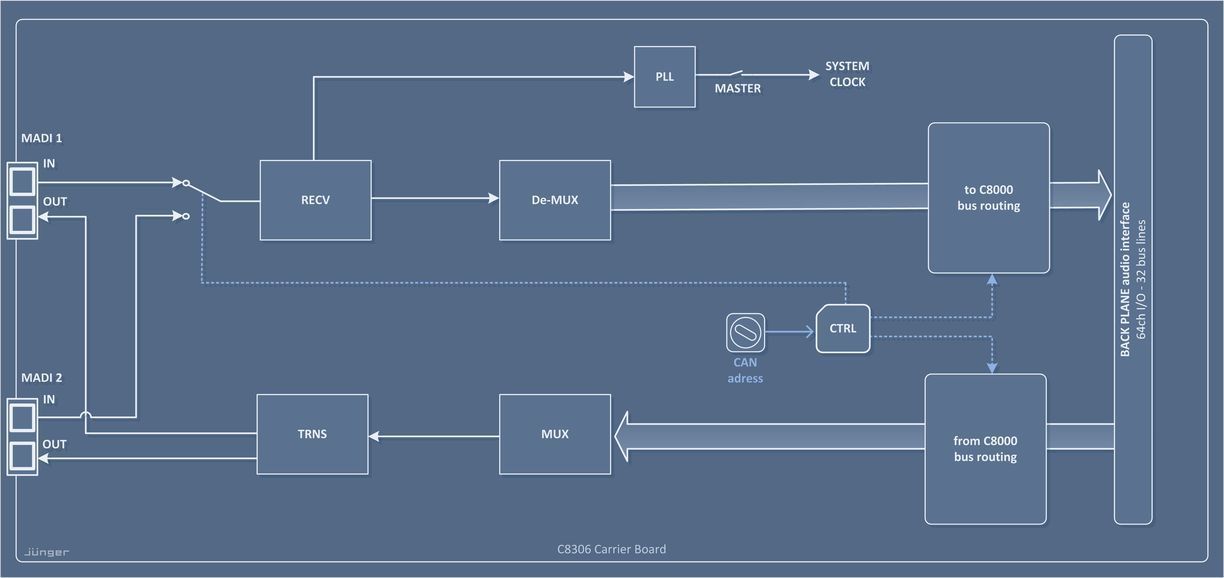

The C8306 is an I/O module designed for the C8000 modular processing solution providing MADI (AES 10) optical connectivity.
The C8306 MADI I/O module may link up to 64 audio channels between stage boxes, mixers, or matrices to or from the C8000 frames.
C8306 is a MADI I/O module with optical interface on SC connectors.
The MADI I/O is a perfect multichannel audio link to integrate C8000 modular processing with 3rd party audio systems such as routing systems to make indivitual processing features provided by processing modules available to such systems.
This solution is also used for live recording (music, TV, radio) where multiple mic board (C8234) are provided in stage boxes and a multi channel signal linking to audio mixing and/or recording systems.
The optical module is available in singlemode and multimode versions.
C8306 is an I/O module designed for the C8000 modular system .
Configuration and operation are performed via web interface. Remote control via GPI or through 3rd Party Devices (through open Ember protocol).
- MADI Digital Audio
- Reference grade word clock recovery from MADI
- Singlemode and Multimode versions available
- 56 and 64 channel formats
C8000 Frame 1RU
- 19" / 1RU modular chassis, 240mm depth
- Up to 3x 8HP or 6x 4HP space available (one side)
- Front or rear rack mounting
- Redundant internal power supplies, IEC sockets with mains filters
C8000 Frame 3RU 76HP
- 19"/ 3RU modular chassis, 240mm depth
- Up to 76HP space available (one side)
- Single internal power supply, IEC socket with mains filter and power switch
C8000 Frame 3RU 76 + 72HP
- 19" / 3RU modular chassis, 435mm depth
- Up to 76HP (front) and 72HP (rear) space available
- Dual internal power supplies, IEC sockets with mains filters and power switches
C8000 Frame 3RU 64/76; 4 independent sync areas
- 4 independent bus-isolated backplane sections (each one with 8 slots back to back)
- Local Audio Clock Distribution and Busses for each Section
- Front & Rear Assembly (front-side: 64 HP; rear: 76 HP)
- Redundant, Load Balanced Power Supplies with Individual Mains Input
- 19" modular chassis, 3RU, 435mm depth
