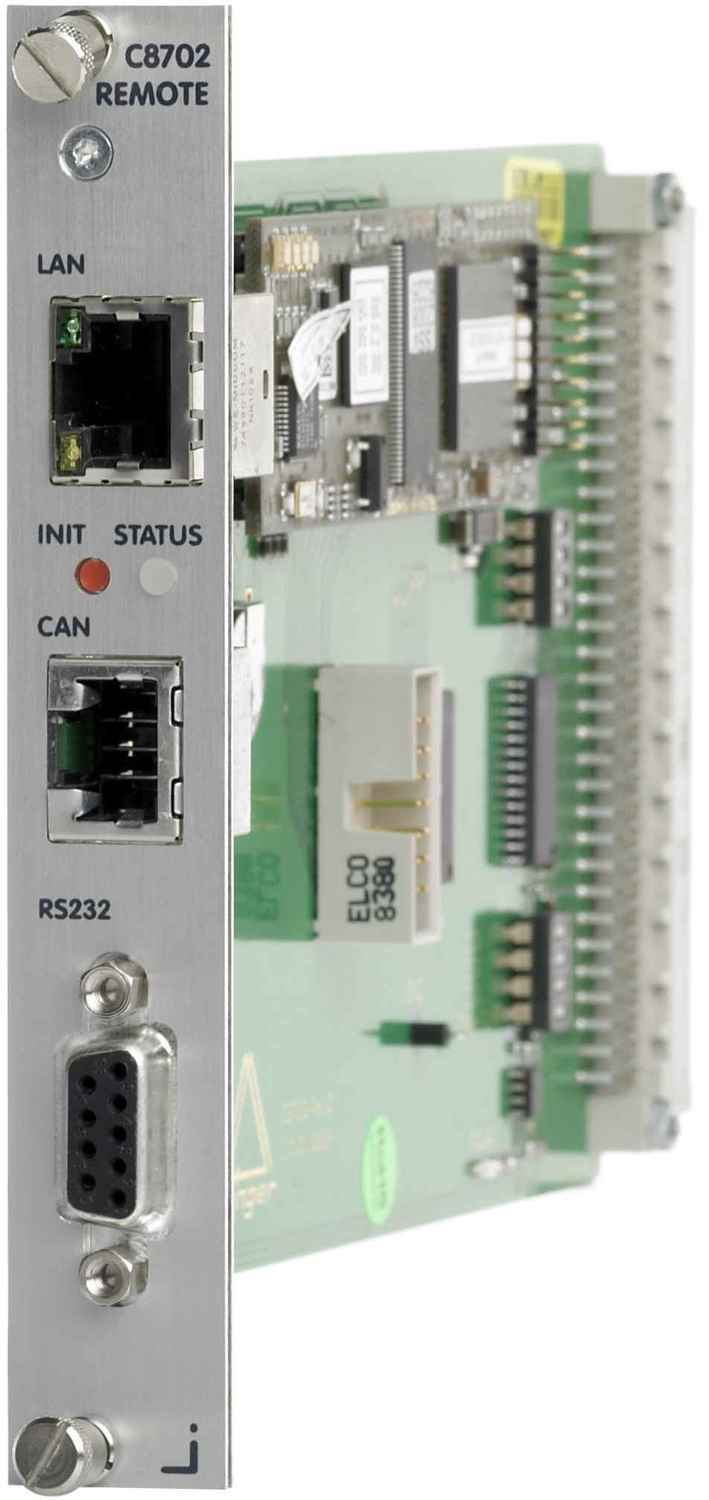

Frame Controller
Key Features
- TCP/IP over Ethernet Interface for C8000 Frames
- EmBER plus Protocol for 3rd Party Applications
- Optional SNMP Agent
- Web Interface for Set Up and Monitoring of C8000 Modules
- Native CAN Bus Interface
- Front Side RJ45 CAN Connector
- Front Side 9-pin Serial (RS232) Service Connector
- Front Side RJ45 Ethernet Connector
- Front Side Status LED
- Front Side INIT Button
Versions & Options
- L_C8702_SNMP License C8702 SNMP
Manual
